Wireshark Tutorial


Below is an abridged cheat sheet of Wireshark fundamentals that you'll use in this course.

This page is by no means comprehensive—we encourage you to bookmark and familiarize yourself with one of the many in-depth Wireshark tutorials on the web. Some great examples are:

Wireshark Basics

Wireshark is a graphical packet analyzer. We recommend using Wireshark for manual packet inspection to aid in developing your solutions for Project 4.



Running Wireshark Inside the VM

To run Wireshark inside your VM, launch the interactive menu (accessible via the bottom-left-most icon). Navigate to the Internet tab, and select Wireshark.

Launching Wireshark from the applications menu



Opening Packet Capture Files

In Project 4, we provide you with a set of network packet captures (.pcap files). To start analyzing these packets with Wireshark, click on File and then Open. Select your pcap file of choice.

Selecting Open from the Wireshark menu to load a pcap capture



After selecting a .pcap file, you will be taken to the Main Window. Here you will find three essential panes for packet analysis: the Packet List pane, the Packet Details pane, and the Packet Bytes pane.

Wireshark main interface showing packet list



The Packet List displays a complete list of packets captured in the selected trace. You can double-click on any packet to inspect it.

Wireshark packet list view



There are several important columns to check out:

  • No: The order number of the packet.
  • Time: The timestamp of the packet.
  • Source: The source address of the packet. This is where the packet came from.
  • Destination: The destination address of the packet. This is where the packet is headed.
  • Protocol: The type of protocol the packet is using. Examples include TCP, HTTP, SMTP, FTP, IMAP, etc.
  • Length: The length of the packet in bytes.
  • Info: Additional packet info.


After selecting a packet, you can explore the fields and information contained in each of the packet's layers. The Packet Details pane begins with the packet's link layer frame and ends with its app layer application protocol (if applicable for the packet).

Wireshark packet details pane



Select a layer to inspect:

  • Network Layer: Includes the network protocol, source address, and destination address. These match the corresponding columns in the Packet List.

    Wireshark network layer details

  • Transport Layer: Includes the source port, destination port, and relative sequence and acknowledgment numbers which help track the order of packets in TCP connections.

    Wireshark transport layer details

    The transport layer also contains relative flags for the specific packet and protocol.

    Wireshark TCP flags details

  • Application Layer: Includes details specific to the application protocol.

    Wireshark application layer details



Utilize this pane to explore the complete raw packet data, including both hexadecimal values (left) and corresponding ASCII representations (right).

Wireshark packet bytes view showing raw data



Helpful Tips & Tricks

Filter Toolbar

The Filter toolbar can help you quickly apply display filters to the Packet List.

Wireshark display filter toolbar



Filter Operators

eq or == : Equality comparison operator

tcp.srcport eq 21

! : Not operator

!(tcp.srcport eq 21)

and : And operator

tcp.flags.syn eq 1 and tcp.flags.ack eq 1

or : Or operator

tcp.flags.syn eq 1 or tcp.flags.ack eq 1

Filter Examples

❬protocol❭ : Filter by protocol type

ftp

ip.addr eq ❬ip❭ : Filter by IP address

ip.addr eq 192.168.56.1

ip.src eq ❬ip❭ : Filter by source IP address

ip.src eq 192.168.56.1

ip.dst eq ❬ip❭ : Filter by destination IP address

ip.dst eq 192.168.56.1

tcp.port eq ❬port number❭ : Filter by port number

tcp.port eq 54017

tcp.srcport eq ❬port number❭ : Filter by source port number

tcp.srcport eq 54017

tcp.dstport eq ❬port number❭ : Filter by destination port number

tcp.dstport eq 54017

tcp.flags.❬flag❭ eq 1 : Filter by flags

tcp.flags.syn eq 1

tcp.stream eq ❬stream number❭ : Filter by stream

tcp.stream eq 0


Follow Specific Protocol Stream

To follow a specific protocol stream/connection, right-click on the packet from the desired stream, select Follow, and choose the corresponding protocol stream you wish to view (as seen below). You may also find the Follow option under Analyze.

Wireshark follow TCP stream dialog

This will apply a display filter to the Packet List, showing only packets from the selected stream (as an example, it may apply a filter like tcp.stream eq ❬stream number❭). Additionally, a separate window will open displaying the stream content in a more readable format.



Capture Additional Packets

The Capture menu can help you sniff for additional packets and produce .pcap files for further testing.

Wireshark Capture menu dropdown

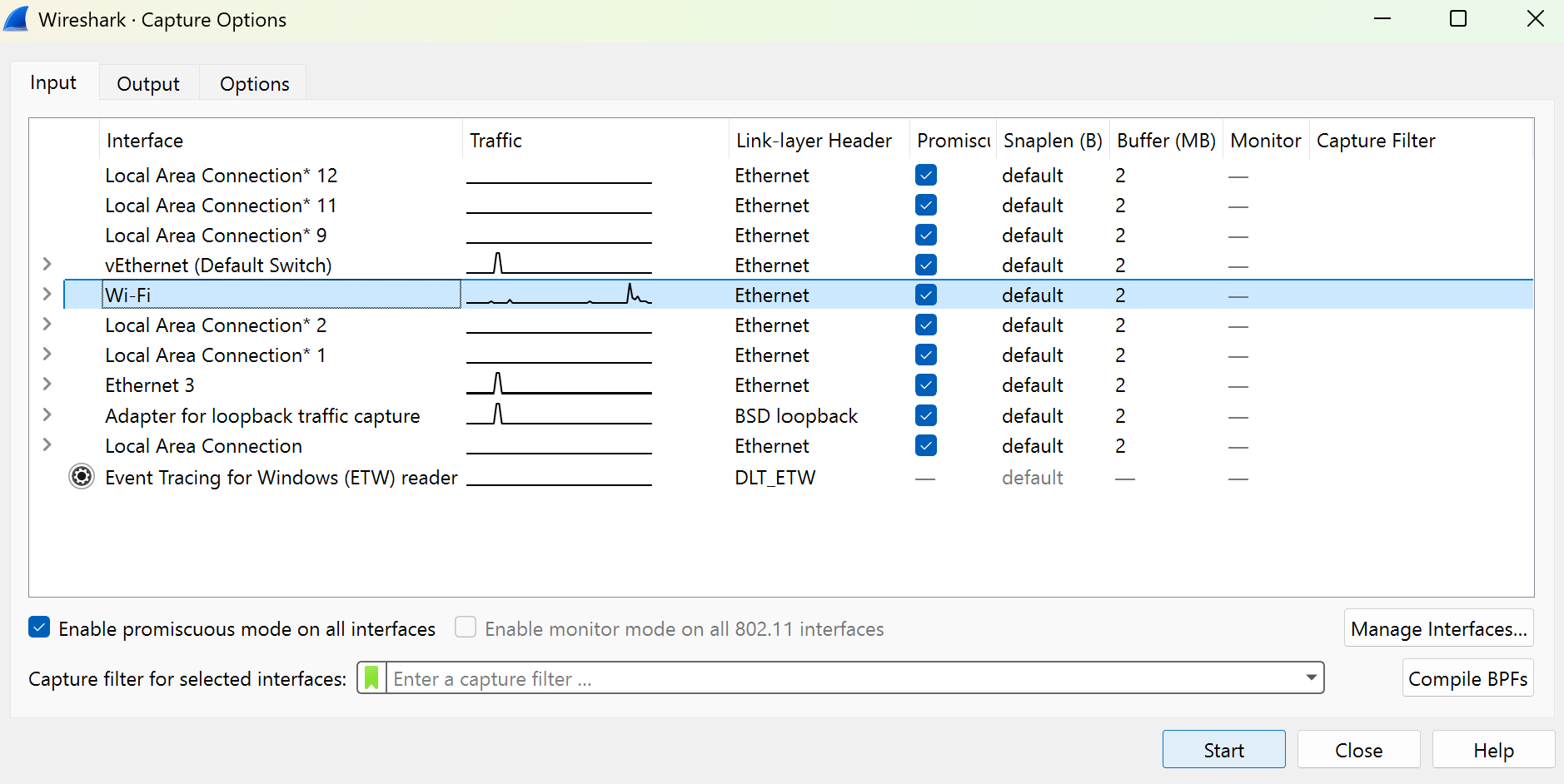

Within capture, select Options and then choose your active internet connection (most likely Wi-Fi or Ethernet) under the Input tab. On the Output tab, change the default file setting from .pcapng to .pcap. Press Start and a temporary file will be produced based on network traffic. Click the red Stop button on the left side of the icon bar to stop capturing.

Wireshark Capture options dialog

You can visit various HTTPS sites, such as https://users.cs.utah.edu/~snagy/courses/cs4440/ or https://cs4440.eng.utah.edu/project3/sqlinject0/, to capture and inspect encrypted transmissions. This is especially useful if you want to test your solutions to Project 4 with additional .pcap files.
